Automotive Boot loader ISO 14229 (UDS)

Automotive industry uses ISO 14229 (UDS) protocol for program loading Application software and Calibration data into ECUs target memory. The ISO 14229 provides service IDs for features that are required to support program loading operation.

List of UDS service IDs that are required for program loading

  • Service ID $10: Session control request
  • Service ID $83: Set Time control parameters (Server and client timeout settings)
  • Service ID $27: Security Seed & Key, Fingerprint check
  • Service ID $28: Communication control
  • Service ID $87: Link control (Baud rate control)
  • Service ID $31: Routine control: Flash erase, Secure MAC load routines
  • Service ID $85: Disable/Enable diagnostics
  • Service ID $14: Clear DTC memory
  • Service ID $34: Download request
  • Service ID $36: Data transfer request
  • Service ID $37: Data load exit request
  • Service ID $11: Reset (Cold/Warm reset)

Note: For flow control, the UDS protocol uses ISO 15765 communication protocol.

ALTEN Global Technologies: ISO 14229 UDSonCAN Boot loader Software

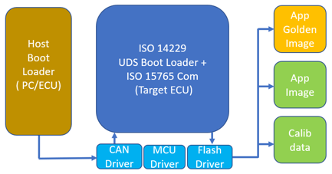

ALTEN Global Technologies has designed Processor-independent UDS (ISO 14229) based boot-loader software, which can be easily integrated on any target processor.

The UDS Boot loader can be configured with communication CAN IDs, default data blocks size and timeout parameters. Only the MCU, CAN and Flash driver need an update for a new processor.

ALTEN Global Technologies provides services in design and develop complete host and target boot loader software compliance to international standards and customer proprietary standards.
